BodenWarme Electric Undertile Heating Cable Kit 150w with Manual Thermostat

Code:
CABLE150MAN

This item is out of stock and not available to purchase.

The BodenWärme 150W Electric Undertile Heating Cable Kit with a manual thermostat offers a simple yet powerful heating solution for bathrooms and irregularly shaped rooms with natural stone, porcelain, or ceramic tile floors. Designed for minimal temperature adjustments, it de... Read More

Create a wishlist

Description

The BodenWärme 150W Electric Undertile Heating Cable Kit with a manual thermostat offers a simple yet powerful heating solution for bathrooms and irregularly shaped rooms with natural stone, porcelain, or ceramic tile floors. Designed for minimal temperature adjustments, it delivers consistent warmth, eliminating hot and cold spots common with traditional heating. The sleek white manual thermostat features intuitive dial control, fitting neatly into a 45mm single gang backbox for effortless operation.

The 3.6mm dual-core wire keeps floor height impact low, while tough Fluoropolymer insulation with a PVC outer layer ensures long-term durability. In well-insulated spaces, this system can replace bulky radiators, maximizing floor space and efficiency. For faster heating and reduced energy loss, pair it with 6mm or 10mm insulation boards. Backed by a lifetime warranty, this dependable and easy-to-install system brings lasting comfort to your home.

Features & Benefits: BodenWarme Electric Undertile Heating Cable Kit 150w with Manual Thermostat

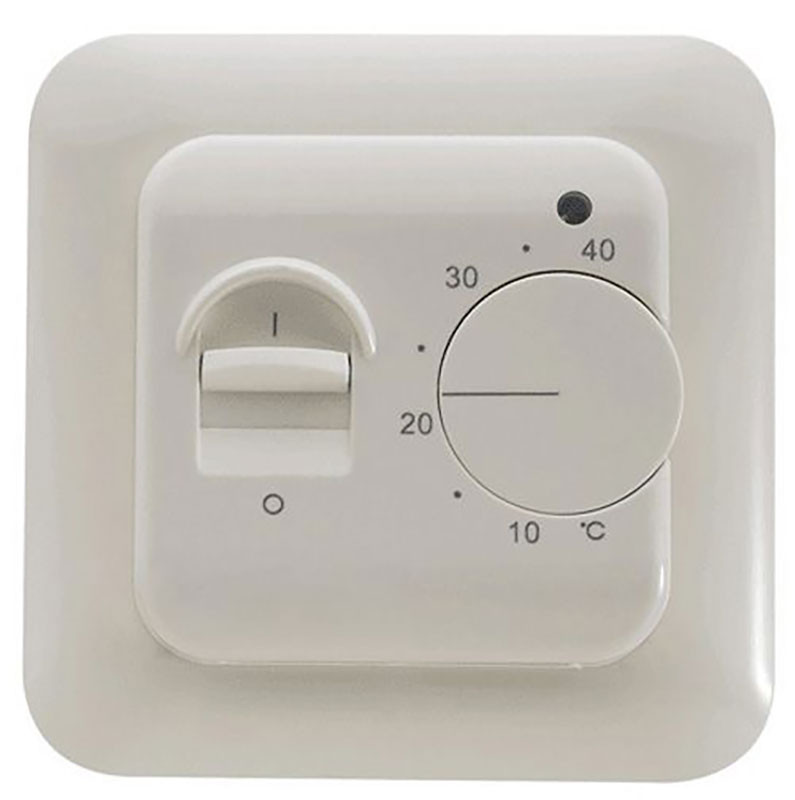

  • Straightforward manual thermostat in white
  • Simple, single connection point keeps the increase in floor height to a minimum
  • Tough Fluoropolymer conducting insulation with PVC outer insulation ensures durability

How do I calculate the correct size of BodenWärme heating kit?

First measure the total floor area by multiplying the width by the length. Then subtract fixed furniture with a clearance of less than 50mm above the floor to prevent hot spots. With the total area minus deductions, deduct an additional 10% as this will allow for the spacing between cables and around the perimeter of the room.

Kit Contents

  • 1 x BodenWärme 150w/m² underfloor heating cable
  • 1 x Manual Electric Underfloor thermostat in white
  • 1 x Floor temperature sensor with 3m cable and flexible conduit
  • 1 x Installation manual
  • 1 x 25mm fixing tape
  • Lifetime warranty

Standards & Certification

  • CE Certified
  • RoHS Compliant (for guaranteed safety)

Please note:

  • Cables cannot be cut or trimmed; once altered, they are non-returnable.
  • A single thermostat controls up to 20m² of 150W/m² BodenWärme heating cables. Larger areas require separate zones with multiple thermostats.
  • All mains electrical connections must be done by a certified electrician per Part P regulations. The system must be protected by a 30mA RCD, located in the consumer unit or a dedicated fused spur.
  • Ensure the total current does not exceed the circuit's capacity. A standard 13A domestic ring circuit can power the system via a single 13A fused spur.

Details

Coverage 1m2
1.5m2
2m2
2.5m2
3m2
3.5m2
4m2
4.5m2
5m2
6m2
7m2
8m2
9m2
10m2
11m2
12m2
13m2
14m2
15m2
16m2
17m2
18m2
19m2
20m2
Wattage Output 150w / m2 Power Supply AC230V +/-10% 50/60Hz Certification ROHS
TUV
CE
Element Structure Dual Core Wire Cable Thickness 3.6mm Cold Tail Length 3m Cable Spacing 80mm Earth Type 100% Coverage Earth Shield
Conductor Insulation Fluoropolymer Heat Mat Warranty Lifetime Warranty Suitable For Natural Stone
Ceramic Tiles
Porcelain Tiles
Outer Insulation PVC
