BodenWarme Electric Undertile Heating Mat 150w with White iSTAT Thermostat

Code:

MAT150WHITEISTAT

This item is out of stock and not available to purchase.

View alternative products

The BodenWärme Electric Undertile Heating Mat comes with a sleek white iSTAT WiFi Thermostat, offering a modern, energy-efficient heating solution for ceramic, porcelain, and natural stone floors. Unlike radiators, this system provides even, comfortable warmth without hot or c... Read More

View full product details

Ask a question about this product

Create a wishlist

Description

Designed for quick installation, the sticky mesh backing allows easy rolling and cutting for precise placement in regular-shaped rooms and large areas. The BodenWärme Heating Mats are durable, reliable, and backed by a lifetime warranty, while the thermostat is covered by a manufacturer-backed warranty. For maximum efficiency, install over underfloor heating insulation boards to reduce heat loss and speed up heating times.

Features & Benefits: BodenWarme Electric Undertile Heating Mat 150w with White iSTAT Thermostat

Touchscreen iSTAT Thermostat with adaptive learning & 7-day programming
Dual-core 3.6mm wire for minimal floor height impact
Tough Fluoropolymer insulation

How should I calculate the correct size BodenWärme heating kit?

First work out the area of the entire floor space by multiplying the width of the floor by the length. Next, deduct any fixed furniture from the area with a clearance of less than 50mm above the floor. This will remove the risk of causing hot spots in your room. Once you have a total area minus the deductions, you should deduct a further 10% from your total as this will allow for the spacing between mats and for spacing around the perimeter of the room.

This BodenWärme undertile heating kit includes

BodenWärme 150w/m² underfloor heating mat with rapid fit sticky mesh

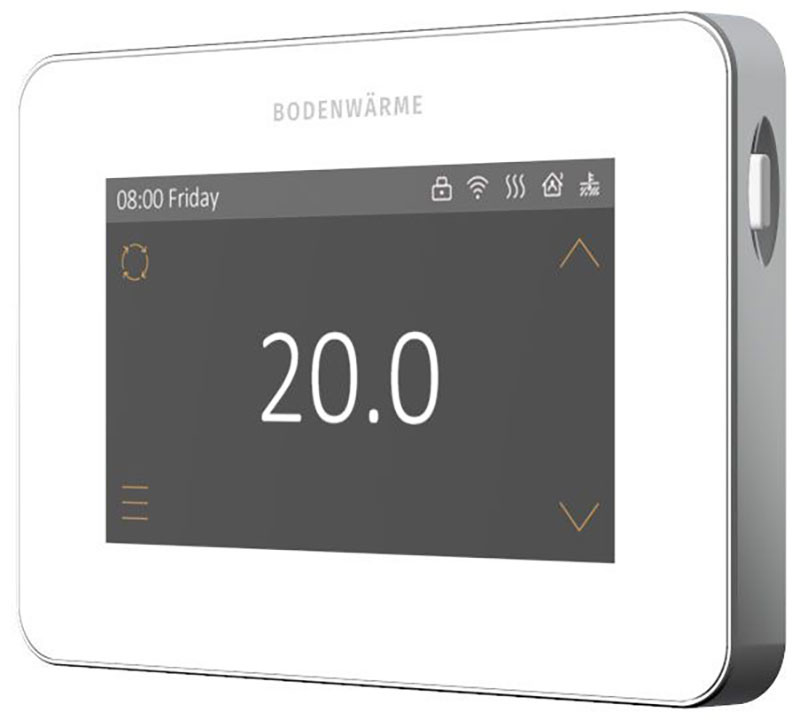

iSTAT thermostat in white
Floor temperature sensor with 3m cable and flexible conduit
Installation manual
25mm fixing tape
Lifetime warranty

Please note:

As with all electrical projects governed by Part P regulations, all mains electrical connections must be undertaken by a certified electrician. The heating must be protected by a 30mA RCD, this can be situated within the consumer unit, or via a dedicated fused spur, you should also ensure that the total current of your heating system does not exceed the current capacity of the circuit it is connected to. Standard domestic ring circuits are rated at 13A and an electrical feed can be taken via a single 13A fused spur.

Specification

Details

Coverage 1m2
1.5m2
2m2
2.5m2
3m2
3.5m2
4m2
4.5m2
5m2
6m2
7m2
8m2
9m2
10m2
11m2
12m2
13m2
14m2
15m2
16m2
17m2
18m2
19m2
20m2 Wattage Output 150w / m2 Certification ROHS
CE Element Structure Dual Core Wire

Cable Thickness 3.6mm Cold Tail Length 3m Cable Spacing 80mm Earth Type 100% Coverage Earth Shield Conductor Insulation Fluoropolymer

Heat Mat Warranty Lifetime Warranty Suitable For Natural Stone
Ceramic Tiles
Porcelain Tiles Outer Insulation PVC
