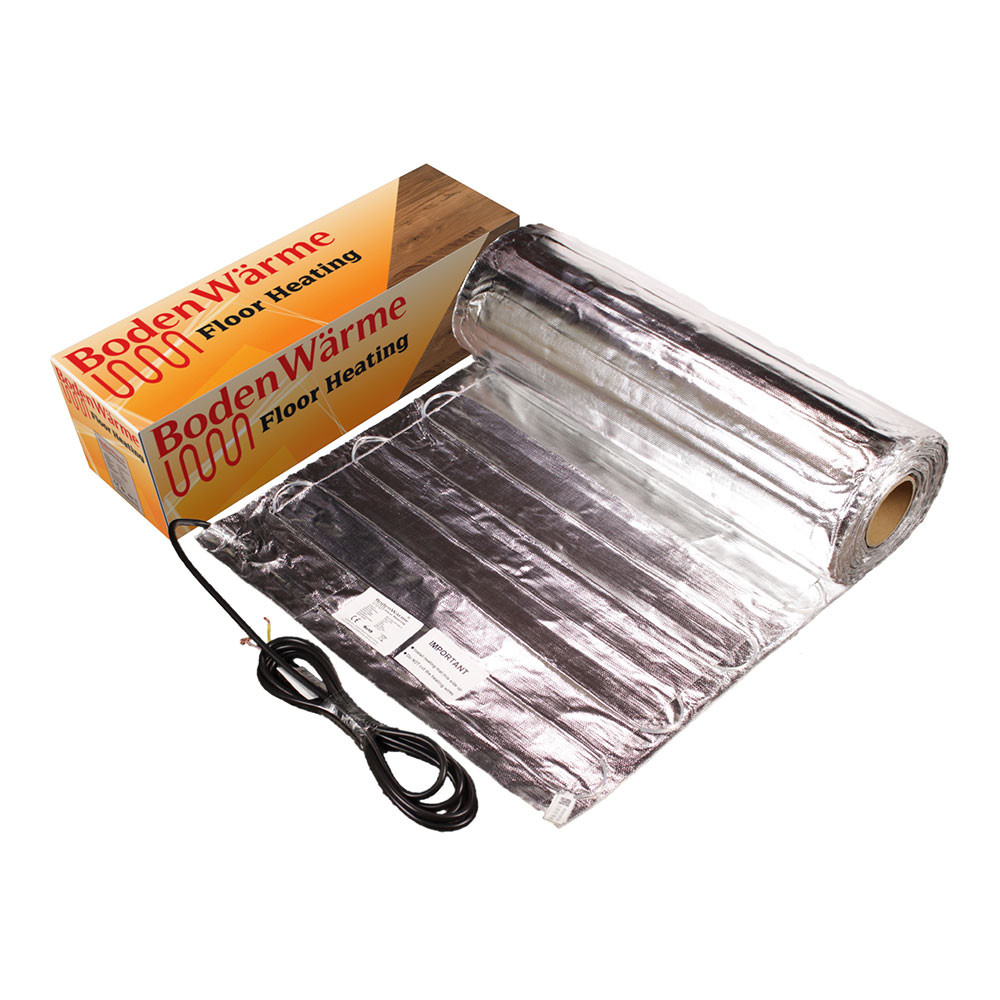

BodenWarme Underfloor Heating Mat for Laminate / Wood

Code:

AF140

This item is out of stock and not available to purchase.

View alternative products

Upgrade your home with the BodenWärme Electric Underwood Heating Mat, the smart solution for laminate and floating engineered wood floors. Say goodbye to uneven heating and cold spots because this innovative system ensures consistent warmth, keeping your feet cozy while mainta... Read More

View full product details

Ask a question about this product

Create a wishlist

Description

Designed for effortless installation, it features an ultra-thin 1mm dual-core wire with a single connection point, preserving your floor's sleek appearance. The tough Fluoropolymer insulation provides exceptional durability, while its AC230V +/-10% 50/60Hz operation guarantees energy-efficient performance all year round.

Features & Benefits: BodenWarme Underfloor Heating Mat for Laminate / Wood

Operates at AC230V+/-10% 50/60Hz for efficient year-round comfort
Ideal heating solution for laminate and floating engineered wood floors
Ultra-thin 1mm wire preserves flooring integrity

How do I calculate the correct size of BodenWärme heating kit?

First measure the total floor area by multiplying the width by the length. Then subtract fixed furniture with a clearance of less than 50mm above the floor to prevent hot spots. With the total area minus deductions, deduct an additional 10% as this will allow for the spacing between mats and around the perimeter of the room.

Standards & Certification

RoHS (Restriction of Hazardous Substances Directive) Compliant
CE Certified

Please note:

Mats cannot be cut or trimmed; once altered, they are non-returnable.
A single thermostat controls up to 24m² of 140W/m² BodenWärme heating mats. Larger areas require separate zones with multiple thermostats.
All mains electrical connections must be done by a certified electrician per Part P regulations. The system must be protected by a 30mA RCD, located in the consumer unit or a dedicated fused spur.
Ensure the total current does not exceed the circuit's capacity. A standard 13A domestic ring circuit can power the system via a single 13A fused spur.

Specification

Details

Coverage 1m2
1.5m2
2m2
2.5m2
3m2
3.5m2
4m2
4.5m2
5m2
6m2
7m2
8m2
9m2
10m2
11m2
12m2
13m2
14m2
15m2
16m2
17m2
18m2
19m2
20m2
22m2
24m2 Wattage Output 140w / m2 Power Supply AC230V +/-10% 50/60Hz Certification ROHS
CE

Underfloor Fitting Type Laminate
Engineered Wood Element Structure Dual Core Wire Cable Thickness 1mm Cold Tail Length 3m Cable Spacing 50mm

Earth Type Aluminium Mat Conductor Insulation Fluoropolymer Heat Mat Warranty Lifetime Warranty Suitable For Laminate & Engineered Wood Flooring
